Rotation angular sensor

Your current location: Home >> Product >> Precision micro motor >> Rotation angular sensor

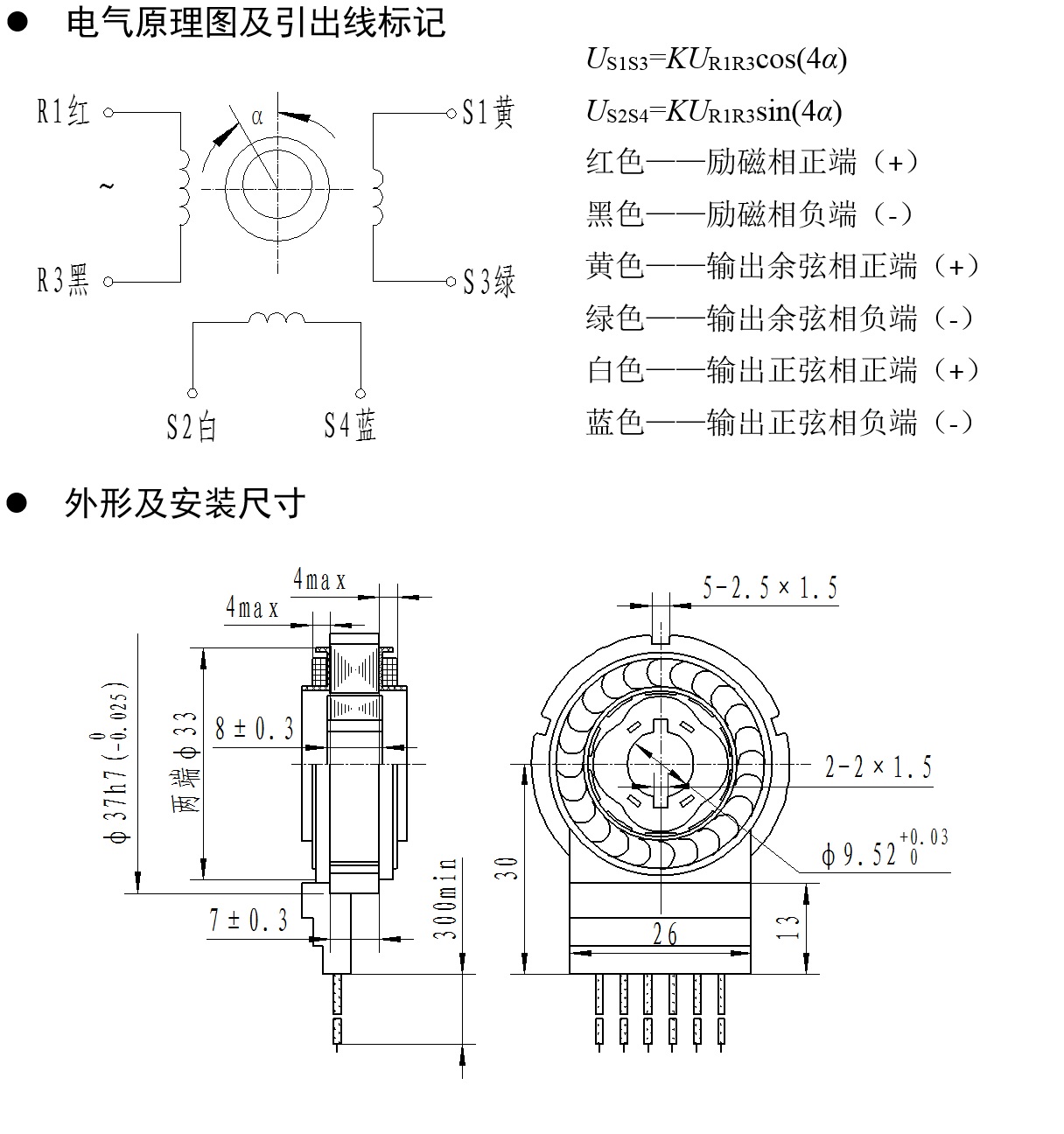

Resolver

  • Classification:Rotation angular sensor

  • Click:
  • Date:2020/12/31
  • Inquiry
Detailed


型号

励磁电压(V)


励磁

频率

(KHz)


变压比


极对数



开路输入阻抗

(Ω)


电气

误差


分解能力(bit)


跟踪转速(r/min)


工作

温度

(°)


绝缘

电阻

(Ω)

重量(g)

37XUDF02

7

10

0.286×(1±10%)

2

120×(1±20%)

≤±60′

10~12

20000

-55℃~+150

≥50MΩ

≤60g

37XUDF03

7

10

0.286×(1±10%)

2

120×(1±20%)

≤±60′

10~12

20000

-55℃~+150

≥50MΩ

≤60g

37XUDF04

7

10

0.286×(1±10%)

3

120×(1±20%)

≤±45′

10~12

20000

-55℃~+150

≥50MΩ

≤60g


永磁步进电机
